FM206A

Frequency:32.768KHz

Size:2.5 x 6.0 mm

Temperature:-40℃~+85℃

Stability:±20ppm

SKU: 5553
Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

Parameter Table

Item / Type YSX2012SK
Standard Frequency 32.768KHz
Dimensions 2.0 x 1.2 x 0.6 mm
Load Capacitance (CL) 12.5pF, or specify
Frequency Tolerance(at 25 ℃)  ± 20 ppm , or specify
Parabolic Coefficient (B) ( – 0.03 ± 0.01 ) * 10-6 / ℃2
Turnover Temperature (Ti) 25 ℃ ± 5℃
Operating Temperature  – 40 ~ + 85 ℃
Shunt Capacitance (C0) 1.3pF typical
Motional Capacitance (C1) 7.0fF typical
Level of Drive 0.1 μW
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
Storage Temperature -55 ~ +125℃
Equivalent Series Resistance(ESR) 90KΩ Max

Part Number Guide X201232768KGB2SI

Quartz Crystal Resonator Dimensions
(mm)		 Frequency
(Hz)		 Load Capacitance
(pF)		 Stability
(ppm)		 Pin Material Operating Temp
X 2.0 x 1.2 32.768K G B 2 S I

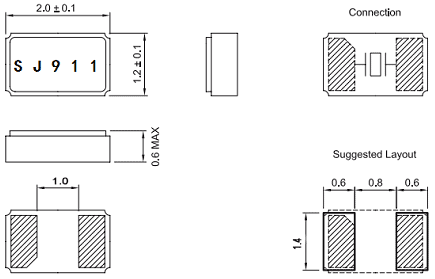

External dimensions
