HC-49SMD

Frequency:3.5MHz-100MHz

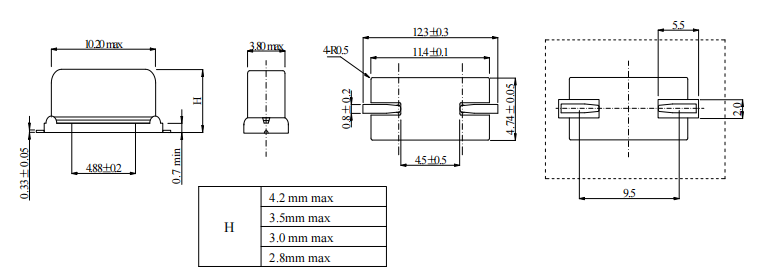

Size:11.4 x 4.8 mm

Temperature:-20℃~+70℃

-40℃~+85℃

Stability:±10ppm

±20ppm

±30ppm

Description

PARAMETERS	SPECIFICATION
Frequency Range	3.5 ~ 100MHz
Operation Mode	（3.5 ~ 40MHz） Fundamental （27 ~ 100MHz）3rd /5rd Overtone
Loading Capacitance	20pF Std. 8 to 33pF , Series available
Drive Level	10μW（300μW Max）
Frequency Tolerance	±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance	See Below
Frequency Stability	±2.5ppm ~ ±50ppm
Operating Temp. Range:	0 ~ +50℃ to -40 ~ +85℃
Storage Temp. Range:	-55 ~ +125℃

Logo	Quartz Crystal Resonator	Frequency	Load Capacitance	Package	Frequency Tolerance	Frequency Stability	Operating Temp. Range
FT	X	16.000MHz	20pF	SM	+/-30ppm	+/-30ppm	B
