HC-49SMD-3Pin

Frequency:3.5-100MHz

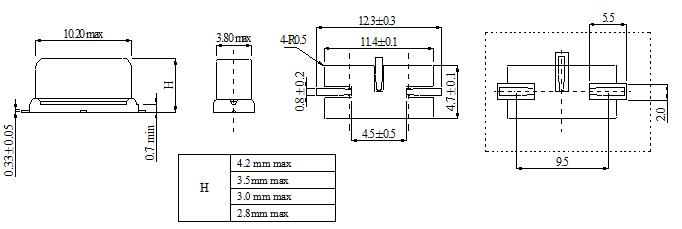

Size:11.5 × 4.8mm

Temperature:-20~+70℃ -40~+85℃

Stability:±10ppm ±20ppm ±30ppm

Description

PARAMETERS	SPECIFICATION
Frequency Range	3.5 ~ 100MHz
Operation Mode	（3.5 ~ 40MHz） Fundamental （27 ~ 100MHz）3rd /5rd Overtone
Loading Capacitance	20pF Std. 8 to 33pF , Series available
Drive Level	10μW（300μW Max）
Frequency Tolerance	±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance	See Below
Frequency Stability	±2.5ppm ~ ±50ppm
Operating Temp. Range:	0 ~ +50℃ to -40 ~ +85℃
Storage Temp. Range:	-55 ~ +125℃

Logo

Quartz Crystal Resonator

Frequency

Load Capacitance

Package

Frequency Tolerance

Frequency Stability

Operating Temp. Range

16.000MHz

20pF

SM3P

+/-30

Definition	Description
Operating Temperature Range	A：-10~+60℃
	B：-20~+70℃
	C：-30~+80℃
	D：-40~+85℃
	E：Customer specified
