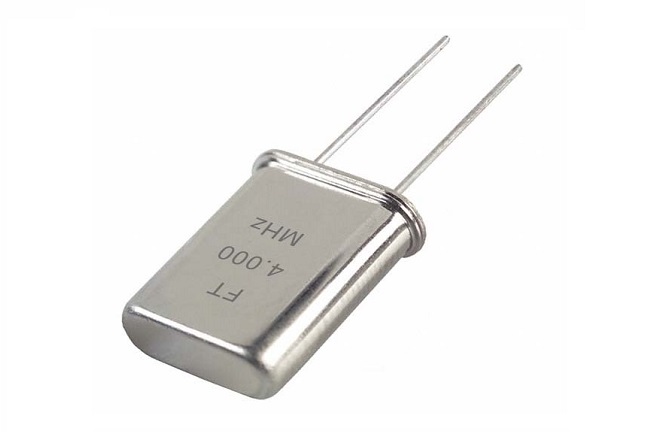

HC-49U

Frequency:1.8MHz-100MHz

Size:11.5 x 4.5 mm

Temperature:-20℃~+70℃

-40℃~+85℃

Stability:±10ppm

±20ppm

±30ppm

Type: ,
Mode: ,
Product No.: ,
Size: ,
Resolution: ,
Outline Dimension: ,
Active Area: ,
Interface: ,
IC: ,
Brightness: ,
Touch Screen: ,
View Direction: ,
Pin No.: ,
Shape: ,

Description

DownloadParameter Table

PARAMETERS SPECIFICATION
Frequency Range 1.8～100MHz
Operation Mode （1.8 ~ 36MHz） Fundamental  （27 ~ 100MHz）3rd Overtone
Loading Capacitance 20pF Std.  8 to 33pF, Series available
Drive Level 100μW（500μW max）
Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance See Below
Frequency Stability ±10ppm ~ ±50ppm
Operating Temp. Range: 0 ~ +50℃ to -40 ~ +85℃
Storage Temp. Range:  -40 ~ +85℃

PART NUMBER GUIDE e.g.FTX16.000M20U-30/30B (*U=HC49U TYPE)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 16.000MHz 20pF U +/-30 +/-30 B



Definition Description
Operating

Temperature Range

 A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

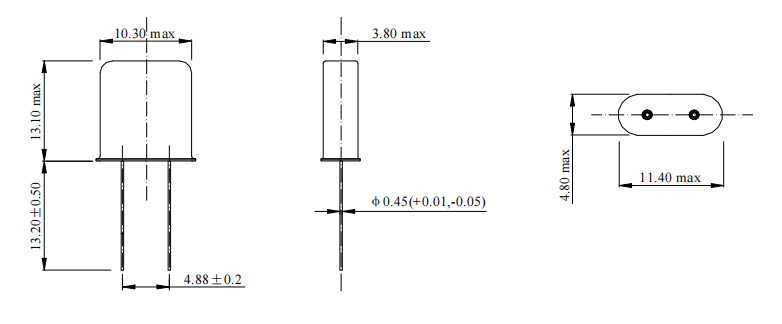

External dimensions
