OSC-DIP14
Frequency:0.4MHz-200MHz
Size:20.4 x 12.8 mm
Temperature:-20℃~+70℃ -40℃~+85℃
Stability:±20ppm ±25ppm
Description
DownloadParameter Table
| PARAMETERS | SPECIFICATION | ||
| ＝Frequency Range | 0.4～200MHz | ||
| Supply voltage | 1.8V、3.3V、5.0V | ||
| Input Current | TTL | CMOS | |
| 0.5MHz ~ 24.999MHz | 25mA max | 20mA max | |
| 25MHz ~ 99.999MHz | 40mA max | 40mA max | |
| 100MHz ~ 200MHz | 60mA max | 60mA max | |
| Frequency Stability Overall | ±20ppm～±100ppm | ||
| Operating Temp. Range | -10～+60℃ to -40～+85℃ | ||
| Storage Temp. Range | -55～+125℃ | ||
| Output Load | CMOS or TTL（15pF/1-10TTL） | ||
| Symmetry | 45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc | ||
| Start-up time | 10mS max | ||
| Rise & Fall Time | 10nS max | ||
| Aging | ±5ppm max/Year | ||
Part Number Guide： e.g. FXO12.000M3.3F-50D (*F=Full Size，DIP14)
| Logo | Quartz Crystal Oscillator | Frequency | Supply voltage | Package | Frequency Stability | Operating Temp. Range |
| F | XO | 12.000MHz | 3.3V | F | +/-50ppm | D |
| Operating Temp. Range | A：-10~+60℃ |
| B：-20~+70℃ | |
| C：-30~+80℃ | |
| D：-40~+85℃ | |
| E：Customer specified |

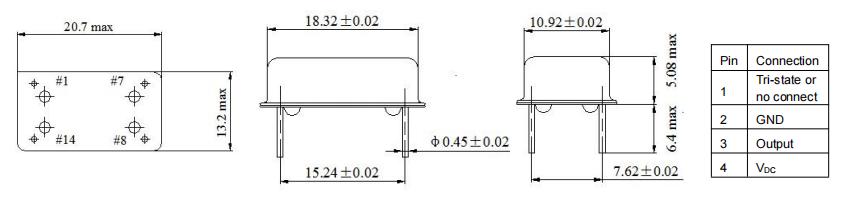

External dimensions
