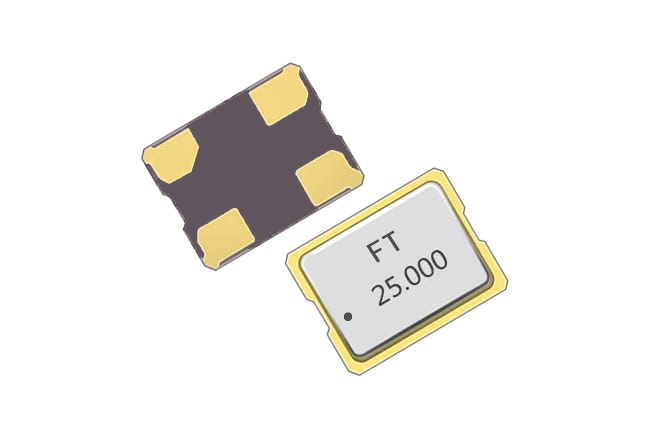

OSC-SMD7050
Frequency:32.768KHz 1MHz-125MHz
Size:7.0 x 5.0 mm
Temperature:-20℃~+70℃ -40℃~+85℃
Stability:±20ppm ±25ppm

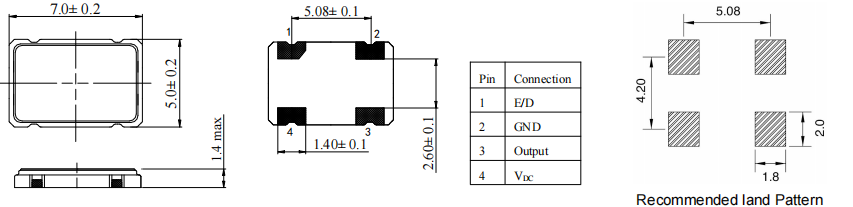

Description
DownloadParameter Table
| PARAMETERS | SPECIFICATION |
| Frequency Range | 1～125MHz |
| Dimensions | 7.0 x5.0x 1.8mm |
| Supply voltage | 1.8V,2.5V,2.8V,3.3V,5.0V |
| Input Current | See Below |
| Frequency Stability Overall | ±20ppm～±50ppm |
| Operating Temp. Range | -10～+60℃ to -40～+85℃ |
| Storage Temp. Range | -55～+125℃ |
| Output Load | HCMOS/TTL（15pF~30pF/10TTL） |
| Symmetry | 45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc |
| Start-up time | 10mS max |
| Enable/ Disable Function | O/E or E/D |
Part Number Guide： e.g. FXO12.000MAA3SM5-50D (*SM5=5.0×3.2 SMD TYPE)
| Logo | Quartz Crystal Oscillator | Frequency | Supply voltage | Package | Frequency Stability | Operating Temp. Range |
| F | XO | 12.000MHz | 3.3 | SM7 | 50 | D |
| Operating Temp. Range | A：-10~+60℃ |
| B：-20~+70℃ | |
| C：-30~+80℃ | |
| D：-40~+85℃ | |
| E：Customer specified |
